THE PRICES, SPECIFICATIONS AND PHOTOS SHOWN IN THIS CATALOG ARE NOT SUBJECT TO ANY CONTRACTUAL OBLIGATION AND MAY CHANGE DURING THE SEASON
CABLE INTEGRATION
Garda incorporates the best solutions developed for top-end carbon racing bikes: the special design of the Stemma S handlebar stem houses the cables within the frame for complete integration and an upscale elegant look.
GENEROUS CLEARANCE
Garda is the perfect product for those who love to ride a modern bike, able to fit (in the disc version) tires up to 32 mm to further increase riding safety and comfort.

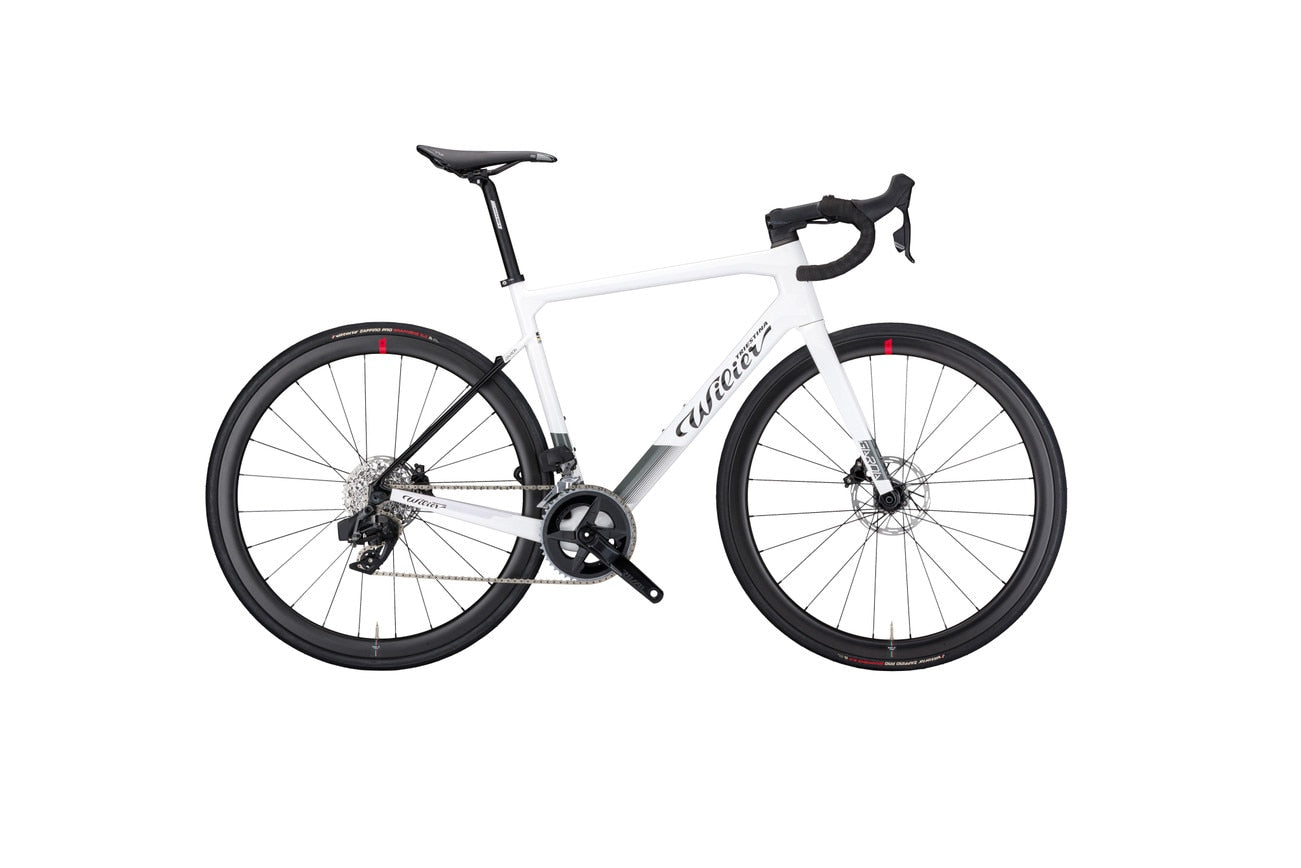

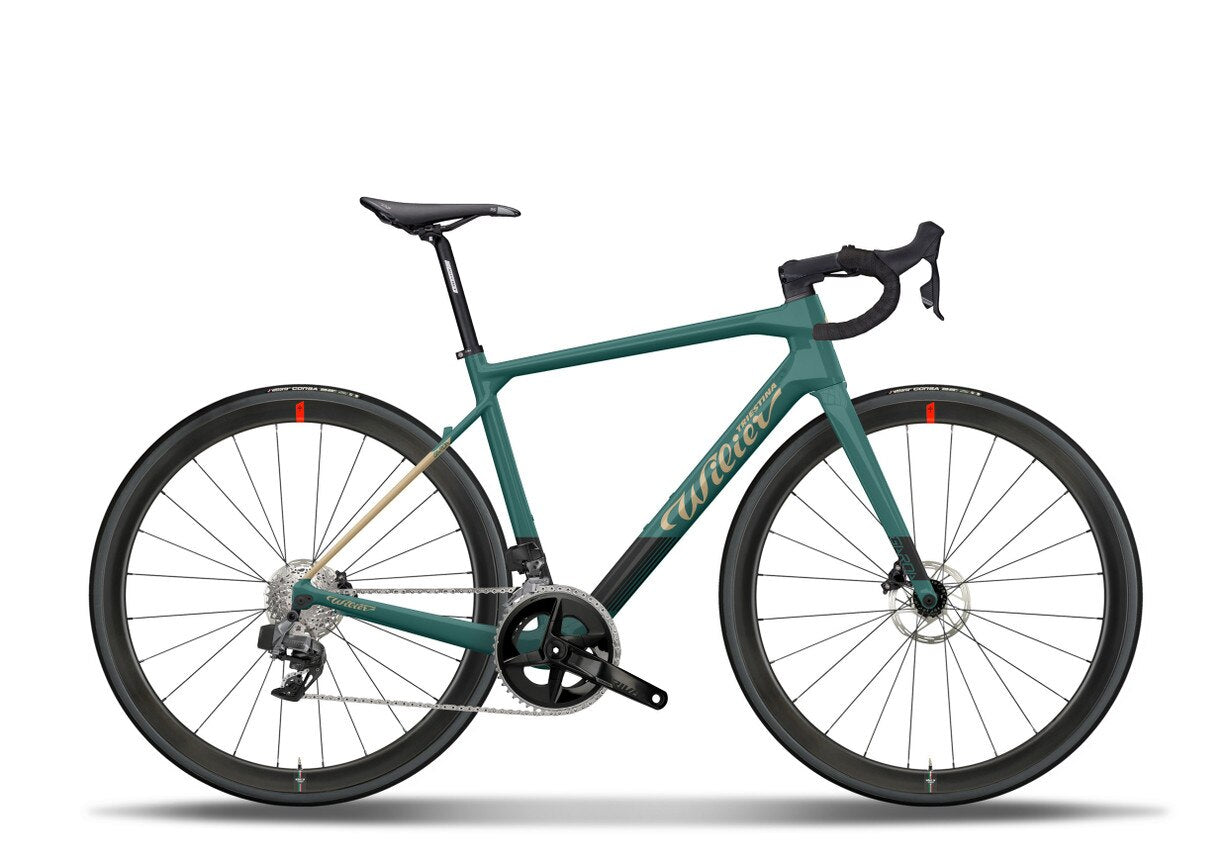

GARDA DISC + BARRA S & STEMMA S / GARDA DISC FRAME KIT + BARRA S & STEMMA S
Frame GARDA DISC - CARBON MONOCOQUE
Fork GARDA DISC - CARBON MONOCOQUE
Handlebar BARRA S (NOT INCLUDED)
Stem STEMMA S
Seatmast RITCHEY 2-BOLT ALLOY BBK (NOT INCLUDED)
THRU-AXLE 12X125 FRONT - 12X171 REAR
Frame weight 1150 G +/- 5%
Fork weight 370 G +/- 5%
| MODEL | SIZE | CRANK ARM | STEM | BAR |
| GARDA DISC/RIM | XS | 170 | 80 STEMMA S | 40 BARRA S |
| GARDA DISC/RIM | S | 170 | 90 STEMMA S | 40 BARRA S |
| GARDA DISC/RIM | M | 172.5 | 100 STEMMA S | 42 BARRA S |
| GARDA DISC/RIM | L | 172.5 | 110 STEMMA S | 42 BARRA S |
| GARDA DISC/RIM | XL | 175 | 120 STEMMA S | 44 BARRA S |
| GARDA DISC/RIM | XXL | 175 | 120 STEMMA S | 44 BARRA S |
